Part No.	Dimension (mm)	Inductance (uH)	DCR (mOHM)	Isat (A)	Irms (A)

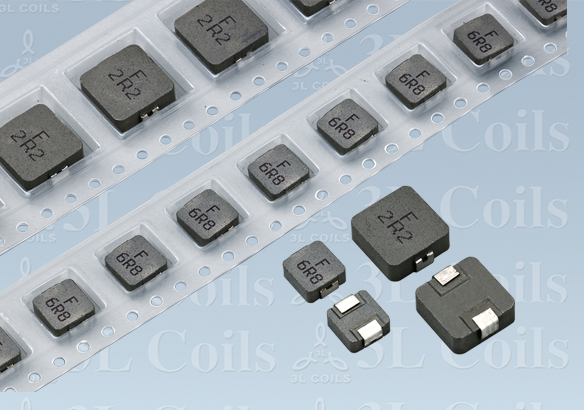

UPIAS0603	7.1 x 6.6	0.10~10.0	1.70~105.0	42.0~5.0	32.0~3.0
UPIA0603	7.5 x 6.8	0.10~10.0	1.70~105.0	42.0~5.0	32.5~3.0
UPIA0604	7.5 x 6.8	0.33~10.0	2.1~60.0	32.0~5.0	25.0~4.5
UPIA1004	11.0 x 10.0	0.30~10.0	1.4~35.0	40.0~7.0	28.0~5.0
UPIA1005	11.0 x 10.0	0.36~10.0	0.92~28.0	40.0~8.0	35.0~7.0
UPIA1203	13.4 x 12.6	0.10~10.0	0.96~35.0	56.0~10.0	43.0~7.0
UPIA1205	13.4 x 12.6	0.36~10.0	1.1~25.5	75.0~9.5	41.0~7.0
UPIA1207	13.4 x 12.6	0.33~10.0	0.9~16.8	65.0~15.5	46.0~10.0

Part No.	Dimension (mm)	Inductance (uH)	DCR (mOHM)	Isat (A)	Irms (A)
UPIFS0603	7.1 x 6.6	1.0~22.0	8.0~135.0	9.5~2.5	12.5~2.9
UPIF0804	8.6 x 8.0	0.19~33.0	1.35~144.0	22.0~3.2	34.0~3.2
UPIF1004	11.0 x 10.0	0.19~47.0	0.80~145.0	46.0~3.0	40.0~3.3
UPIF1205	13.4 x 12.6	0.68~6.8	1.70~18.5	35.0~14.0	34.0~11.0
UPIF1265	13.4 x 12.6	3.3~5.6	5.5~9.0	22.0~18.0	20.0~16.0
UPIF1704	17.3 x 17.0	4.7~47.0	9.32~108.5	16.0~5.0	18.0~5.0
UPIF1707	17.3 x 17.0	2.2~82.0	1.98~91.7	31.0~6.2	43.5~5.5
UPIF2213	23.0 x 22.0	5.6~100	2.30~40.0	38.0~10.0	40.0~9.5
UPIF0503W	5.4 x 5.2	0.10~10.0	3.0~125.0	30.0~3.5	25.0~3.2
UPIF0603W	7.0 x 6.6	0.22~47.0	3.0~385.0	34.0~2.0	24.0~1.5
UPIF1004W	11.5 x 10.0	0.15~100	0.65~340.0	75.0~2.3	45.0~2.0
UPIF1005W	11.5 x 10.0	0.22~100	0.80~290.0	65.0~2.8	37.0~2.1

Part No.	Dimension (mm)	Inductance (uH)	DCR (mOHM)	Isat (A)	Irms (A)
THP141208W	1.4 x 1.2	0.24~0.47	27~35	6.0~4.6	4.1~3.8
THP160808W	1.6 x 0.8	0.22~1.0	40~200	5.5~30	3.4~2.1
THP201208W	2.0 x 1.2	0.24~4.7	23~325	6.5~1.6	6.5~1.7
THP201210W	2.0 x 1.2	0.10~10.0	13.0~660.0	8.5~1.2	7.5~1.0
THP201608W	2.0 x 1.6	0.22~10.0	19~800	6.1~1.0	6.6~1.0
THP201610W	2.0 x 1.6	0.1~10.0	12~580	9.0~1.4	8.5~1.0
THP201612W	2.0 x 1.6	0.1~3.3	6~165	13.0~2.7	12.0~2.4
THP252008W	2.5 x 2.0	0.47~3.3	27~180	6.0~2.5	6.5~2.5
THP252010W	2.5 x 2.0	0.22~10.0	17~560	8.6~1.55	6.8~1.05
THP252012W	2.5 x 2.0	0.1~10.0	10~400	13.5~1.6	12.0~1.2
THP322510W	3.2 x 2.5	0.33~10.0	15~365	8.3~2.2	8.3~2.2
THP322512W	3.2 x 2.5	0.10~10.0	7~230	18.0~2.3	12.0~2.2

Part No.	Dimension (mm)	Inductance (uH)	DCR (mOHM)	Isat (A)	Irms (A)

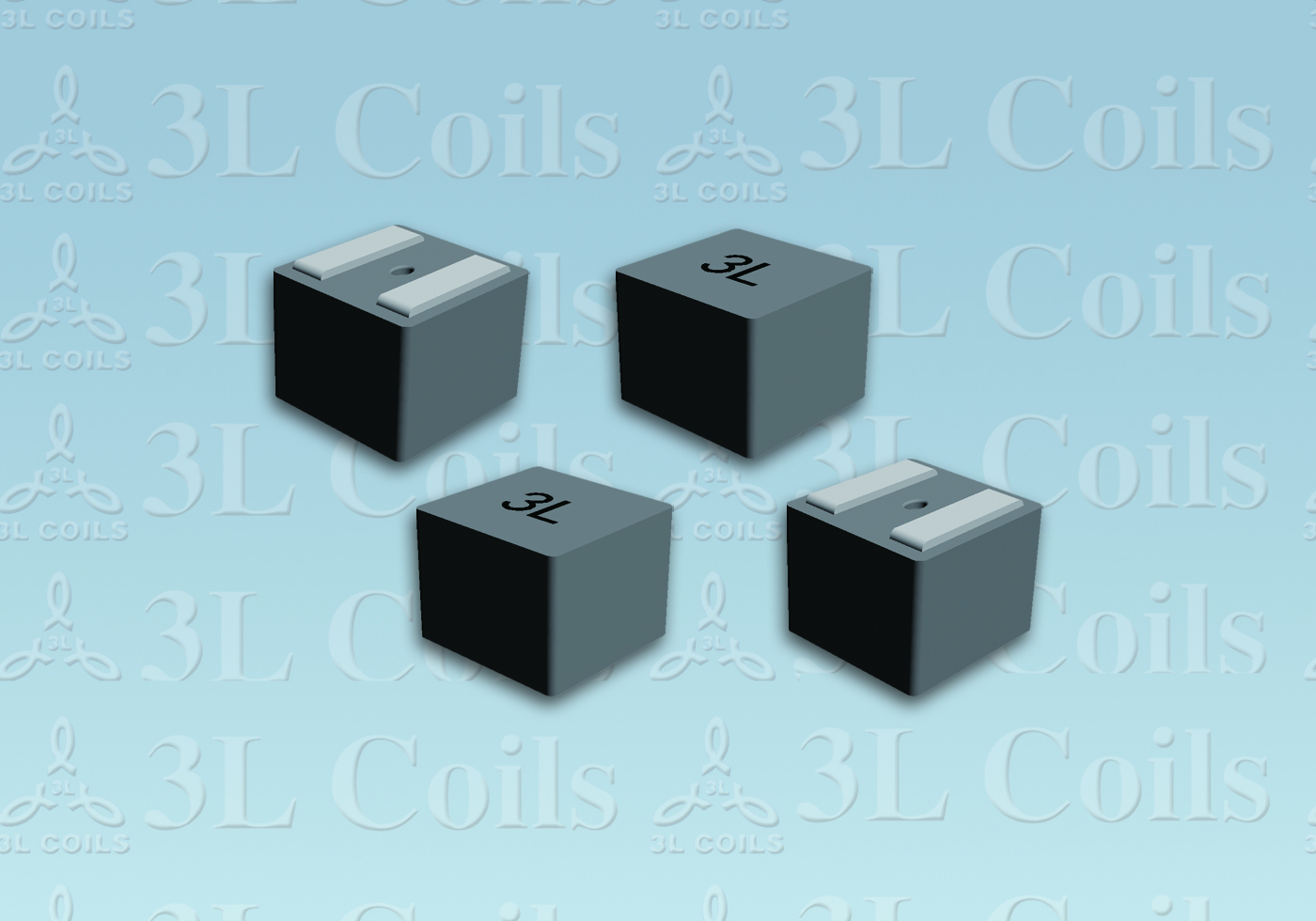

TUP0421W	4.1 x 4.1	0.1~2.2	2.42~38.7	38.0~6.5	18.0~5.6
TUP0403W	4.1 x 4.1	0.47~6.8	7.26~74.1	16.0~3.6	14.0~3.9
TUP0521W	5.5 x 5.3	0.15~1.5	4.6~18.7	30.0~12.0	18.8~8.8
TUP0531W	5.5 x 5.3	0.15~4.7	2.31~36.3	36.0~8.2	22.2~5.9
TUP0505W	5.5 x 5.3	5.6~22.0	24.2~99.65	8.6~3.6	7.2~3.4
TUP0631W	6.6 x 6.4	0.18~4.5	1.75~25.3	40.0~10.0	32.0~7.0
TUP0605W	6.6 x 6.4	0.82~4.7	4.18~18.4	23.0~10.5	21.0~8.5
TUP0606W	6.6 x 6.4	1.0~22.0	4.4~60.63	24.0~5.6	21.0~5.0
TUP0721W	7.8 x 7.6	0.27~1.0	3.5~10.8	35.0~23.0	21.0~11.0
TUP0731W	7.8 x 7.6	1.0~8.2	5.0~48.73	27.0~9.0	21.8~5.9
TUP0707W	7.8 x 7.6	1.0~6.8	2.81~19.6	34.8~12.0	25.0~9.5
TUP0808W	8.9 x 8.5	1.8~10.0	4.0~22.9	28.0~11.0	24.0~8.7
TUP1031W	11.9 x 11.0	0.28~1.5	1.6~6.6	65.0~28.0	35.0~18.0
TUP1006W	11.9 x 11.0	0.68~4.7	1.5~10.72	55.0~25.0	34.0~14.0
TUP1010W	11.9 x 11.0	2.2~15.0	2.8~19.3	34.0~13.5	32.0~13.8
TUP1508W	16.5 x 15.5	2.0~22.0	2.21~23.2	57.0~19.0	40.0~12.0
TUP1510W	16.5 x 15.5	4.7~33.0	3.8~20.0	43.0~16.7	30.0~12.3
TUP1513W	16.5 x 15.5	4.7~33.0	3.3~22.2	44.0~17.0	31.0~14.0

Part No.	Dimension (mm)	Inductance (uH)	DCR (mOHM)	Isat (A)	Irms (A)
UPIBS0603	7.1 x 6.6	0.10~10.0	1.7~105	60.0~7.0	32.5~3.0
UPIB0804	8.6 x 8.1	0.33~33.0	1.90~144	45.0~5.4	28.0~3.0
UPIB1004	11.0 x 10.0	0.56~47.0	1.8~167	55.0~4.5	25.0~3.0
UPIB1205	13.4 x 12.6	0.47~33.0	1.5~78.0	65.0~9.0	35.0~5.2
UPIB1265	13.4 x 12.6	1.0~47.0	1.90~90.0	51.0~9.0	35.0~4.5
UPIB1704	17.3 x 17.0	2.2~10.0	6.4~25.6	40.0~19.5	19.0~10.5
UPIB1707	17.3 x 17.0	1.5~47.0	1.88~45.0	65.0~13.0	42.0~9.0
UPIB2213	23.0 x 22.0	10.0~33.0	4.6~16	44.0~28.0	35.0~22.0

Part No.	Dimension (mm)	Inductance (uH)	DCR (mOHM)	Isat (A)	Irms (A)
HPIF0412	4.4 x 4.0	0.47~4.7	24~168	6.8~2.2	5.4~2.0
HPIF0402	4.4 x 4.0	0.33~10.0	9.8~210	11.0~2.2	10.0~2.0
HPIF0518	5.5 x 5.2	0.47~10.0	9~149	12.0~2.5	10.5~2.5

Part No.	Dimension (mm)	Inductance (uH)	DCR (mOHM)	Isat (A)	Irms (A)

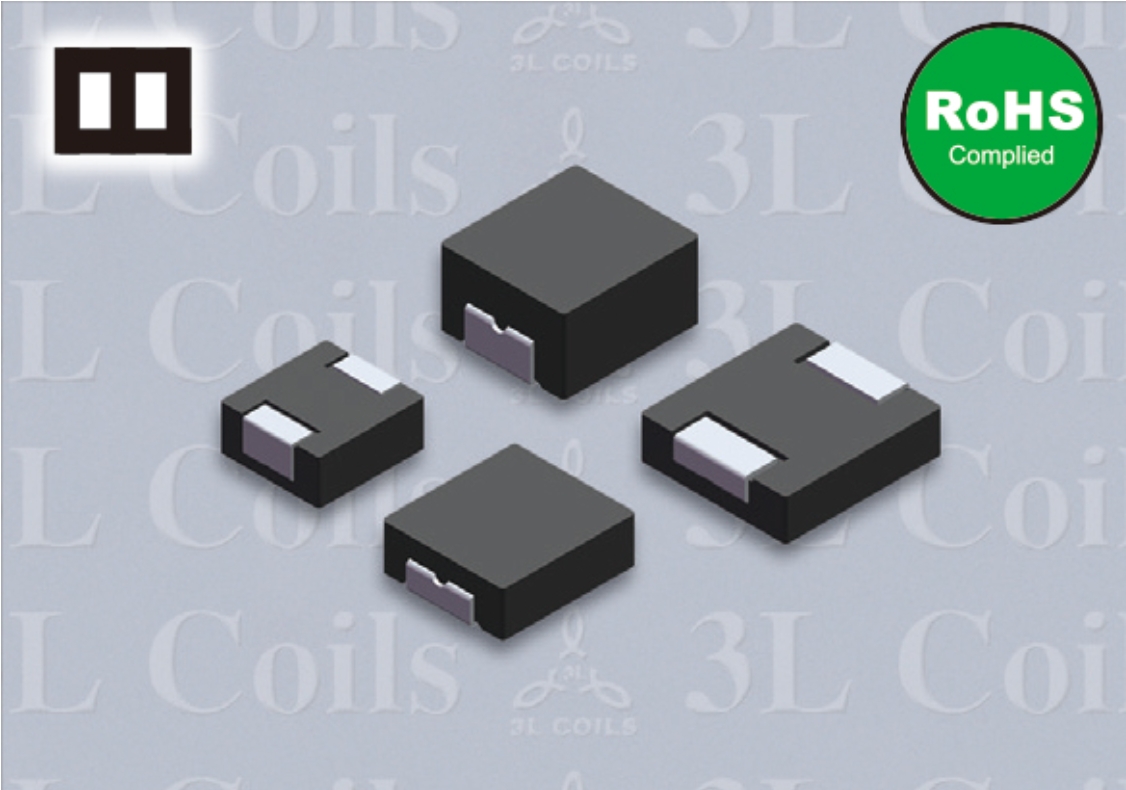

HPI201610	2.0 x 1.6	0.24~2.2	24~197	4.8~1.9	4.0~1.6
HPI201612	2.0 x 1.6	0.24~2.2	21~186	5.3~2.0	4.5~1.5
HPI252010	2.5 x 2.0	0.22~2.2	18~121	6.6~2.4	5.8~1.8
HPI252012	2.5 x 2.0	0.22~2.2	15~105	8.5~2.5	7.3~2.3
HPI201610P	2.0 x 1.6	0.24~2.2	20.5~163	6.0~1.9	4.7~1.8
HPI201612P	2.0 x 1.6	0.24~2.2	19~144	6.5~2.0	5.2~1.8
HPI252010P	2.5 x 2.0	0.22~2.2	17.0~105.0	8.5~2.6	6.5~2.0
HPI252012P	2.5 x 2.0	0.22~3.3	13~144	8.5~2.0	10.0~1.75
HPI0310	3.4 x 3.0	0.22~10.0	14~430	11.0~1.4	7.0~0.9
HPI0312	3.4 x 3.0	0.22~10.0	12~360	12.0~1.5	9.0~1.0
HPI0315	3.4 x 3.0	0.47~10.0	22~360	9.0~2.0	7.0~1.2
HPI0302	3.4 x 3.0	0.22~6.8	10~184	16.0~3.0	10.0~1.6
HPI0410	4.4 x 4.0	0.47~10.0	18.5~400	11.0~1.6	8.5~0.8
HPI0412	4.4 x 4.0	0.33~4.7	14.5~143	14.0~3.2	10.0~2.2
HPI0415	4.4 x 4.0	0.22~10.0	8.8~282	20.0~1.8	11.0~1.2
HPI0402	4.4 x 4.0	0.12~22.0	4.8~320	30.0~2.1	15.0~1.2
HPI0510	5.5 x 5.2	1.0~4.7	52~190	9.4~4.0	3.5~2.2
HPI0512	5.5 x 5.2	1.0~10.0	31.8~326	9.0~2.5	5.7~1.8
HPI0515	5.5 x 5.2	0.68~10.0	14.5~170	15.0~3.6	9.0~2.4
HPI0518	5.5 x 5.2	0.47~10.0	8.9~149	19.0~3.4	10.5~2.8
HPI0502	5.5 x 5.2	1.0~10.0	16.5~162	13.5~4.0	7.5~2.5

Part No.	Dimension (mm)	Inductance (uH)	DCR (mOHM)	Isat (A)	Irms (A)

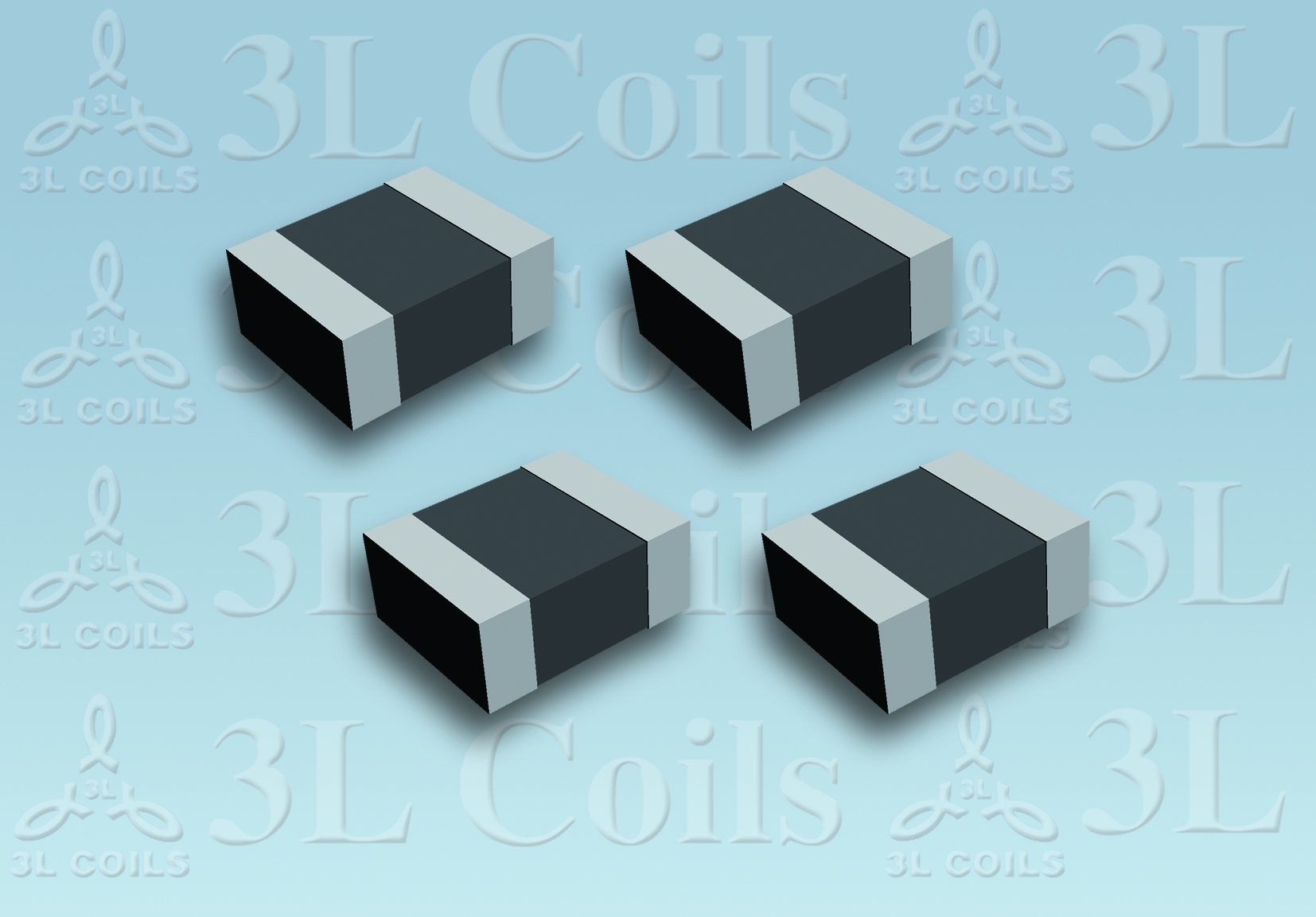

PHP201610P	2.0 x 1.6	0.47~3.3	32~235	5.4~2.1	4.4~1.5
PHP201612P	2.0 x 1.6	0.47~3.3	26~210	5.8~2.2	4.5~1.4
PHP252010P	2.5 x 2.0	0.47~4.7	27~240	6.5~2.2	5.2~1.6
PHP252012P	2.5 x 2.0	0.24~4.7	15~180	9.0~2.0	7.2~1.5
PHP322512	3.2 x 2.5	0.47~6.8	22~276	6.8~2.2	5.2~1.5
PHP322520	3.2 x 2.5	1.0~4.7	25~98	8.0~3.4	4.5~2.2

Part No.	Dimension (mm)	Inductance (uH)	DCR (mOHM)	Isat (A)	Irms (A)

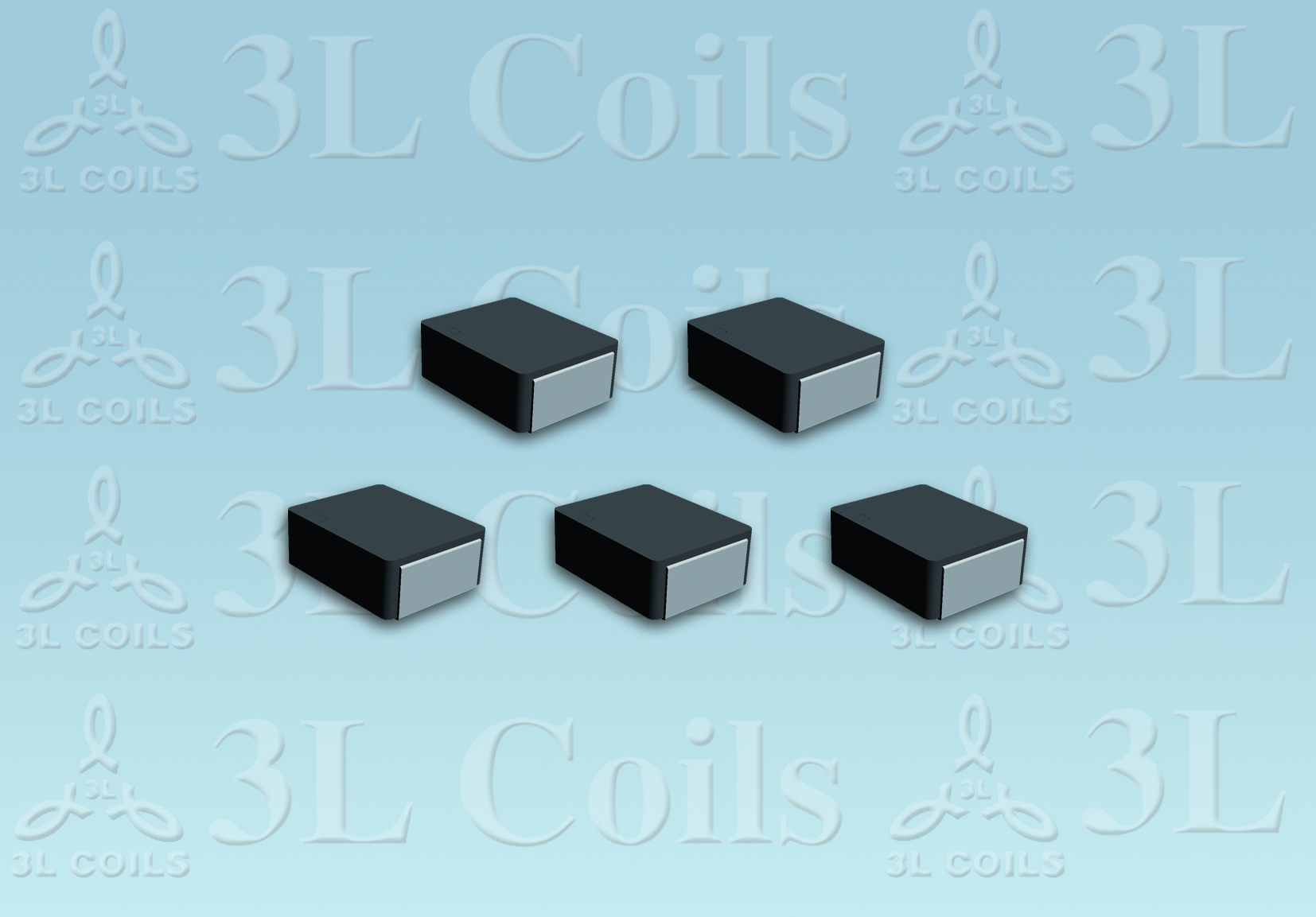

LHP201610P	2.0 x 1.6	0.24~4.7	19~342	7.5~1.4	6.5~0.8
LHP201612P	2.0 x 1.6	0.47~4.7	28~270	5.8~1.4	4.5~1.0
LHP252010P	2.5 x 2.0	0.47~10.0	25~513	6.5~0.9	5.2~0.6
LHP252012P	2.5 x 2.0	0.24~10.0	15~462	9.0~0.9	7.2~0.7
LHP322512	3.2 x 2.5	0.47~10.0	22~410	9.0~1.8	5.8~1.1
LHP322520	3.2 x 2.5	1.0~4.7	24~82	7.6~3.4	4.5~2.1

Molded Power Choke

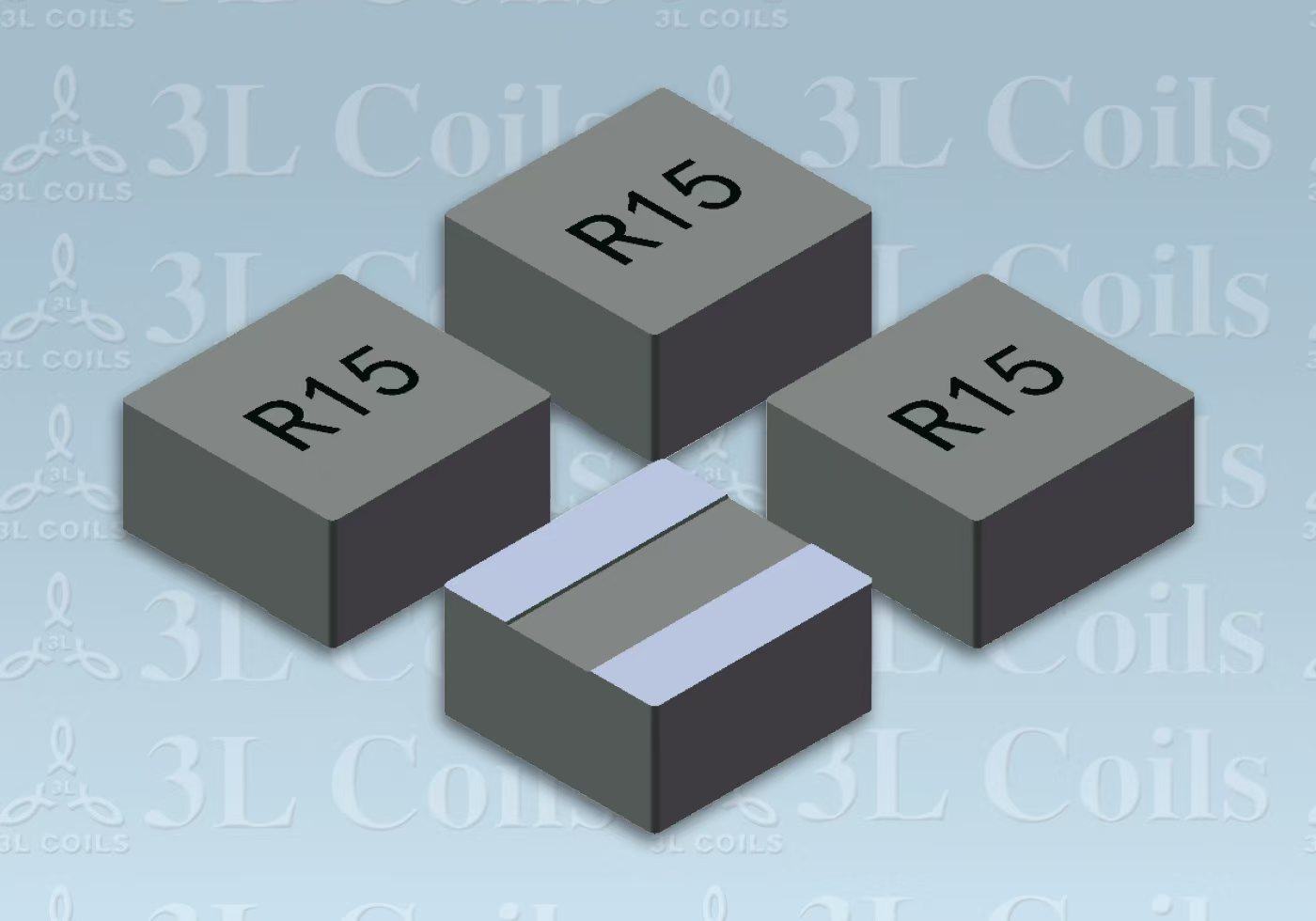

BTU
